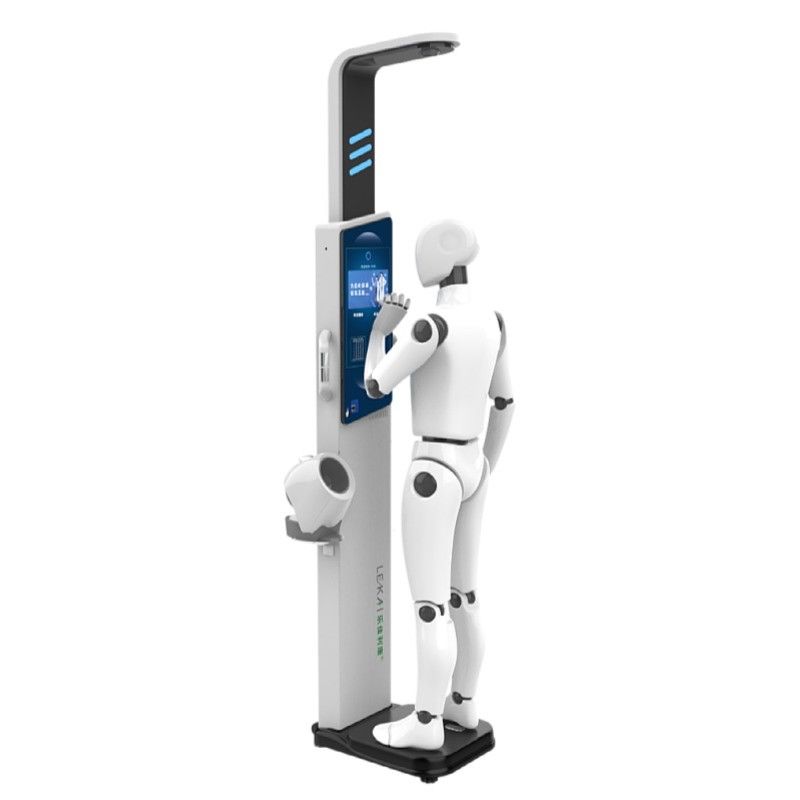

This scale can automatically measure height ,weight, blood pressure, heart rate, body composition, blood oxygen and body temperature.
The measurement results can be displayed on 10.2'' LCD advertising touch screen, broadcast and thermal printed.
|
Product Details:
|
| Warranty: | 1 Years | Customized Support: | OEM, ODM, Software Reengineering |
|---|---|---|---|
| Power Supply: | AC100-240V | Display Type: | LCD |
| Product Name: | Coin Operated Full Body Fat Scale Body Fat Analyzer Vending Machine | Function: | Height, Weight, Bp, And Fat Measurement |
| Fat Measure Range: | 5%-50% | Bloodpressure Range: | 0-39Kpa |
| Pulse Range: | 40-180 Times Per Minute | Display: | 10.2" LCD Touch Screen |
| G.W: | 43kg | Volume Weight: | 64kg |
| Working Voltage: | AC100-240V | Overall Size: | 33*55*235cm |

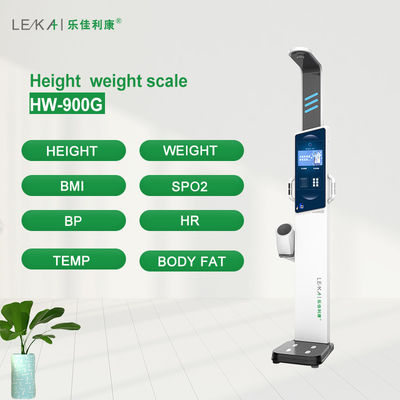

Module No. | HW-900G(Medical Fat mass Height and Weight Scale for pharmacy blood pressure) |

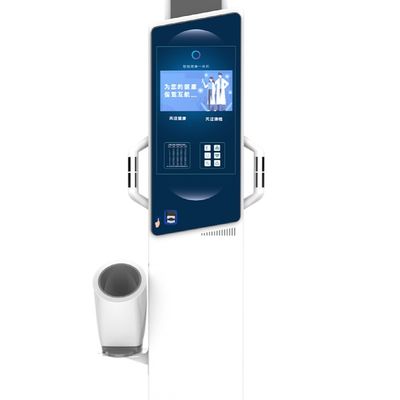

Display screen | LCD touch screen9(Touch screen with voice and video instruction) |

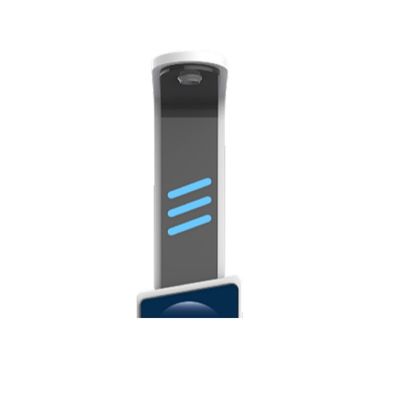

Height measurement | Ultrasonic probe |
Measurement range of height | Height: 0-200cm |
Measurement range of weight | Weight: 1-200kg |
BMI | Automatic display |
Deviation of height | Height: ±0.1cm |
Blood Pressure Range | 0-39KPa (Pulse: 40-180 times/min) |
Fat Measurement Range | 5%-50% (Division: 0.5%) |
Basal metabolism | 385kcal-5000kcal |
Deviation of weight | Weight: ±100g |
Coin operation | Support most countries’ coin or game coin |
Bill operation | optional |
Printer | Thermal printer |
Printing Content | Gender, age, date, time, height, weight, BMI, systolic pressure, diastolic pressure, pulse, fat mass, fat rate, metabolism, water content, water rate, muscle content, muscle rate, skeleton content, skeleton rate, etc. |
Data Transmission | RS-232 serial port (optional Bluetooth or WIFI) |
Working Voltage: | AC100-240V, 50HZ |
Measuring Speed: | 480 times per hour |
Standby power consumption | <8W |
Working temperature/humidity | -10-40℃ 20-95% |
Product size | Height of machine: 240cm(Height can be customized); |
Package dimension | 187*50*19cm, 67*52*40cm |
Net weight/package weight | 38kg/43kg |

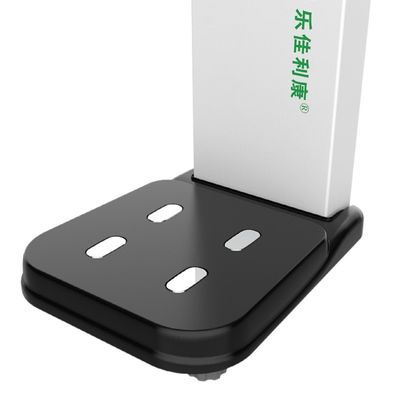

Support feet | High quality anti-wear support feet + wheels, easy to move |
Product performance description
