                        Product Details:



  |

| Warranty: | 1 Year | Customized Support: | OEM, ODM, Software Reengineering |
|---|---|---|---|
| Type: | Medical / Personal Scale | Power Supply: | AC100-240V |
| Display Type: | LCD | Material: | Steel |

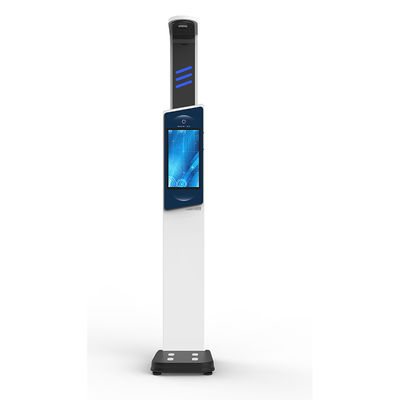

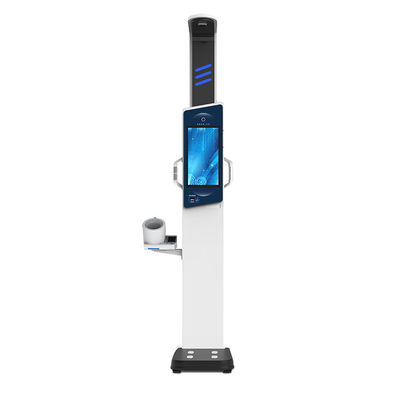

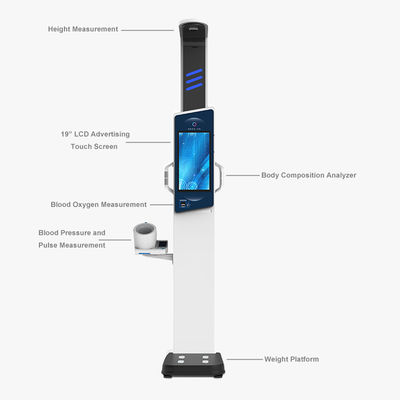

| Product Name: | Self Service Medical Checkup Health Kiosk | Function: | Height, Weight, Bp, And Fat Measurement |
| Fat Measure Range: | 5%-50% | Bloodpressure Range: | 0-39Kpa |
| Pulse Range: | 40-180 Times Per Minute | Display: | 19" LCD Touch Screen |
| G.W: | 43kg | Volume Weight: | 64kg |
| Working Voltage: | AC100-240V | Overall Size: | 43*61*240cm |
Module No.  | HW-900G  |
Display screen  | 19" LCD touch screen (with voice and video instruction)  |

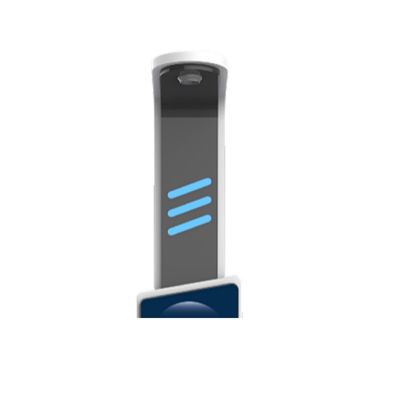

Height measurement  | Ultrasonic probe  |
Measurement range of height  | Height: 0-210cm  |
Measurement range of weight  | Weight: 1-300kg  |
BMI  | Automatic display  |
Deviation of height  | Height: ±0.1cm  |
Blood Pressure Range  | 0-39KPa (Pulse: 40-180 times/min)  |
Fat Measurement Range  |  5%-50% (Division: 0.5%)  |
Basal metabolism  |  385kcal-5000kcal  |
Deviation of weight  | Weight: ±100g  |
Coin operation  | Support most countries’ coin or game coin  |
Bill operation  | optional  |
Printer  | Thermal printer  |
Printing Content  | Gender, age, date, time, height, weight, BMI, systolic pressure, diastolic pressure, pulse, fat mass, fat rate, metabolism, water content, water rate, muscle content, muscle rate, skeleton content, skeleton rate, etc.  |
Data Transmission  |  RS-232 serial port (optional Bluetooth or WIFI)  |
Working Voltage:  | AC100-240V, 50HZ  |
Measuring Speed:  | 480 times per hour  |
Standby power consumption  | <8W  |
Working temperature/humidity  | -10-40℃ 20-95%  |
Product size  | Height of machine: 240cm(Height can be customized);  |
Package dimension  | 187*50*19cm, 69*54*41cm  |
Net weight/package weight  | 38kg/43kg  |
Support feet  | High quality anti-wear support feet + wheels, easy to move  |
