                        Product Details:



  |

| Warranty: | 1 Year | Customized Support: | OEM, ODM, Software Reengineering |
|---|---|---|---|
| Type: | Medical / Personal Scale | Power Supply: | AC100-240V |
| Display Type: | 19 LCD Touch Screen | Material: | Steel |
| Product Name: | Health Kiosk | Function: | Height, Weight, Blood Pressure And Body Composition Measurement |
| Height Measurement Range: | 0-210cm | Optional Functions: | Blood Oxygen And Body Temperature Measurement |
| Printer: | Thermal Printer | Coin Operation: | Optional |
| Data Transmission: | RS-232 | Application: | Fitness Center, Health Center, Hospital, Clinic, Pharmacy |
| Platform Size: | 33*55cm | MOQ: | 1pc |

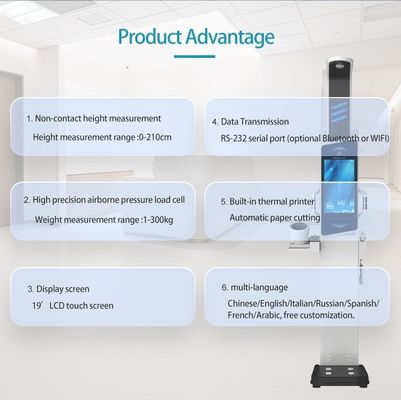

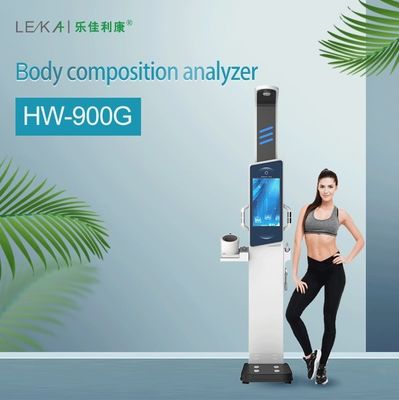

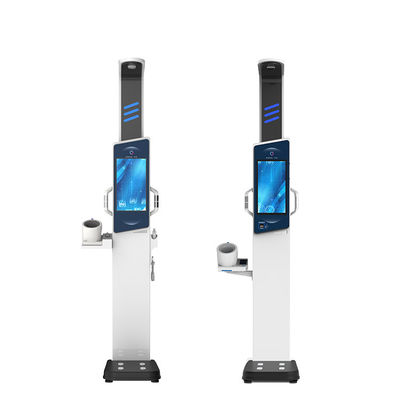

Module No.  | HW-900G  |

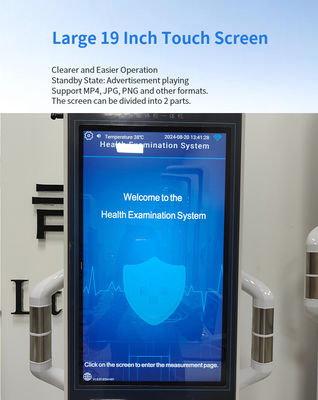

Display screen  | 19 inch LCD touch screen  |
Height measurement  | Ultrasonic sensor  |
Measurement range of height  | 0-210cm  |
Measurement range of weight  | 1-300kg  |
BMI  | Automatic display  |
Division of height  | ±0.1cm  |
Division of weight  | ±100g  |
Blood Pressure Range  | 0-39KPa (Pulse: 40-180 times/min)  |
Fat Measurement Range  |  5%-50% (Division: 0.5%)  |
Basal metabolism  |  385kcal-5000kcal  |
Coin operation  | Support most countries’ coin or game coin  |
Bill operation  | optional  |
Printer  | Thermal printer  |
Functions  | Body height, weight, BMI, body composition, blood pressure, blood oxygen and body temperature  |
 Data Transmission  | Bluetooth and WIFI  |
Working Voltage  | AC100-240V, 50HZ  |
Measuring Speed  | 480 times per hour  |
Standby power consumption  | <10W  |
Working temperature/humidity  | -10-40℃ 20-95%  |
Product size  | 33*55*240cm  |
Package dimension  | 70*51*42cm 31kg      99*38*45cm 34.5kg  |
N.W. / G.W.  | 47kg/65kg  |
Support feet  | High quality anti-wear support feet + wheels, easy to move  |
